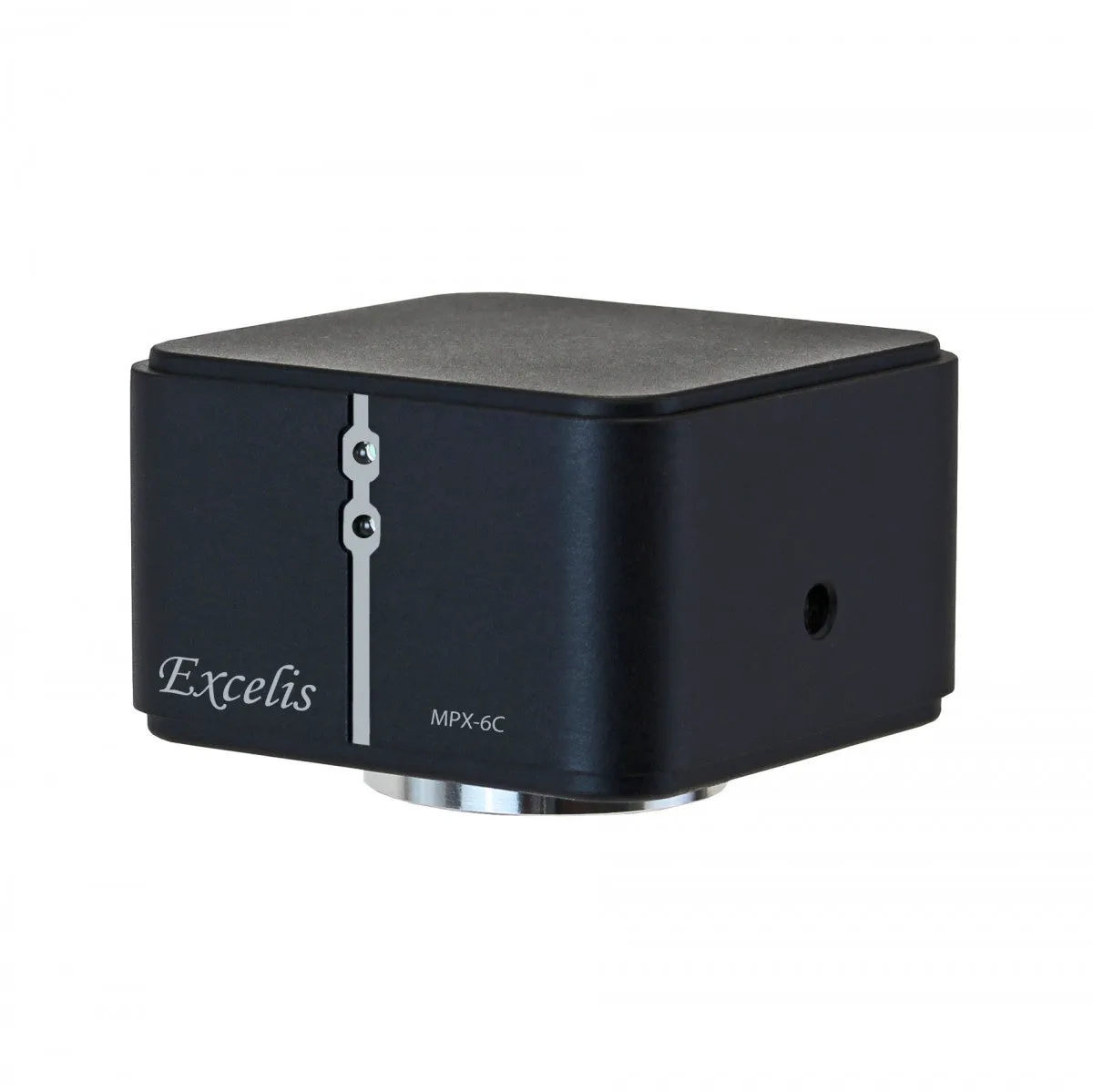

The new Excelis™ MPX-6C Digital Color Microscope Camera delivers excellent performance for routine microscopy imaging applications. A Sony STARVIS CMOS sensor is at the core of the MPX-6C and features a rolling shutter for high resolution and great color at fast frame rates. Lightning fast data transfer across a USB 3.0 cable ensures stunning live views of the specimen. The new CaptaVision software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more!
Specifications:
- Excellent color and fast frame rates
- Real-time stitching (via CaptaVision )
- Depth of field fusion (via CaptaVision )
- Intelligent flatfield correction (via Captavision )
- Sony STARVIS IMX178 color CMOS sensor
- View full 6MP live images at 40fps
- New CaptaVision Imaging Software (included) delivers full camera control, advanced image processing, customizable user interface, static and dynamic measurements with layers, and more (requires PC or Mac; not included).
- Standard C-mount easily adapts to most microscopes; 0.65x camera adapter recommended.
- 1-year warranty
- In the box: Excelis MPX-6C Camera, USB 3.0 Cable, CaptaVision PC Imaging Software
| Excelis MPX-6C (AU-6C-CMOS) | |
|---|---|
| Sensor | 1/1.8" Sony STARVIS IMX178LQJ-C color CMOS, 2.4µm pixels |
| Dynamic/Static Resolution | 3072x2048 |
| Frame Rate | 40fps @ full frame (3072x2048) |
| Shutter | Rolling |
| Image Transmission | High speed via USB 3.0 to PC |
| Exposure Time | 0.13ms – 15s |
| White Balance | Automatic and Manual |
| Other Settings | Gain, Gamma, Noise Reduction, Flatfield Correction, and more |
| PC Imaging Software | CaptaVision Imaging Software (for PC/Windows and Mac OS; Linux under development) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield correction; extended depth of focus (focus stacking); real-time image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPG, PNG, TIF and DICOM (not available on Mac OS) |
| Output Mode | USB3.0 (compatible with USB2.0) |
| System Requirements (for PC Imaging Software) | Intel Processor (Core i5 or higher); 8GB RAM or more; USB 2.0 Hi-Speed port or higher (USB3.0 recommended) |
| Power Supply | through USB cable |
| Lens Mount | C-Mount lens adapter, 0.65x recommended |
