| Product Attribute | Attribute Value |
|---|---|
| Cable Length | 2 m |
| Connection Type | Cable |
| IP Rating | IP67 |
| Measurement Range | 0.2 m |
| Mounting Type | Bracket Mount |
| Output | NPN |
| Sensing Mode | Background Suppression Fixed |
| Series | |
| Supply Voltage | 24 VDC |
| Technology | Photoelectric |
| Type | Reflective Sensors |
Overview

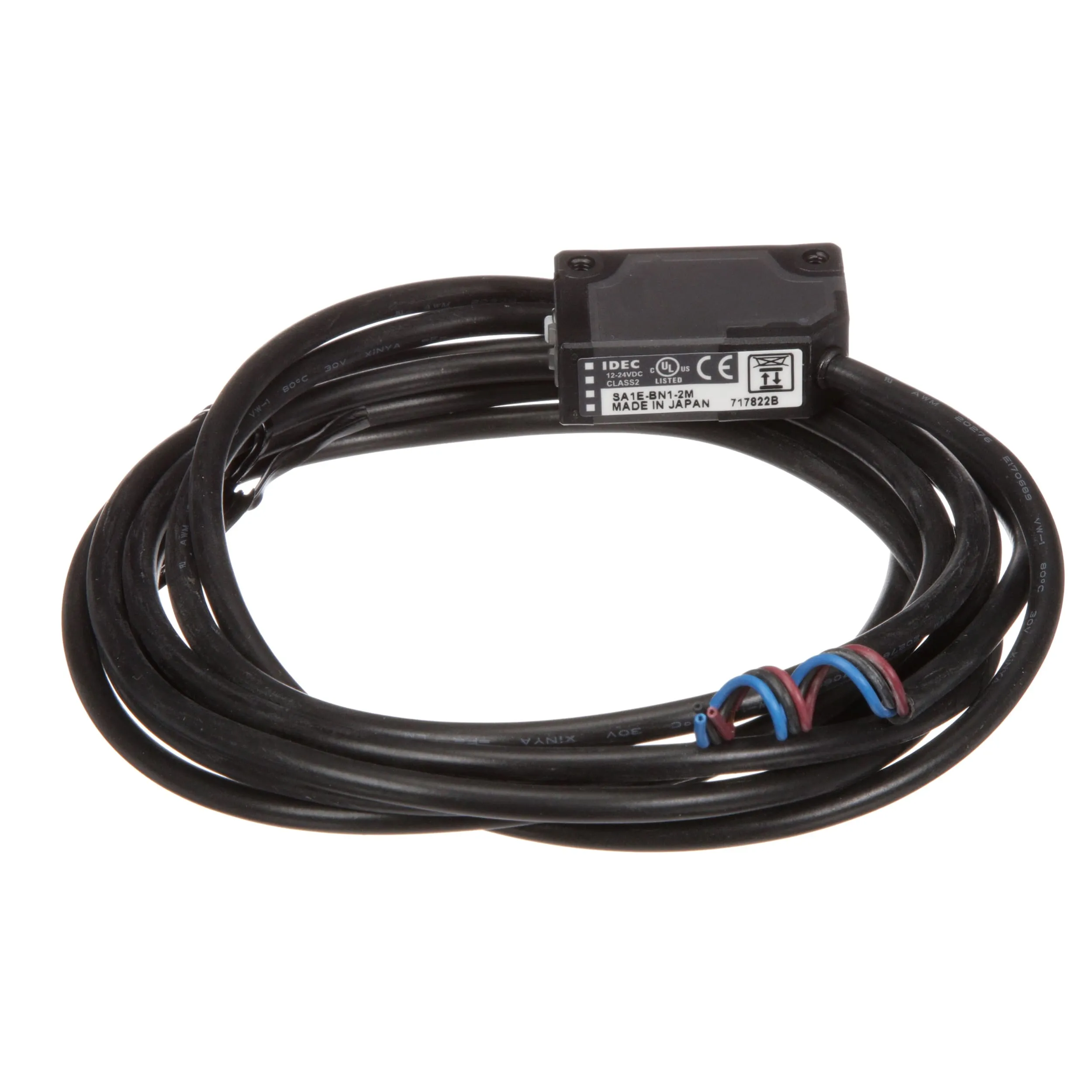

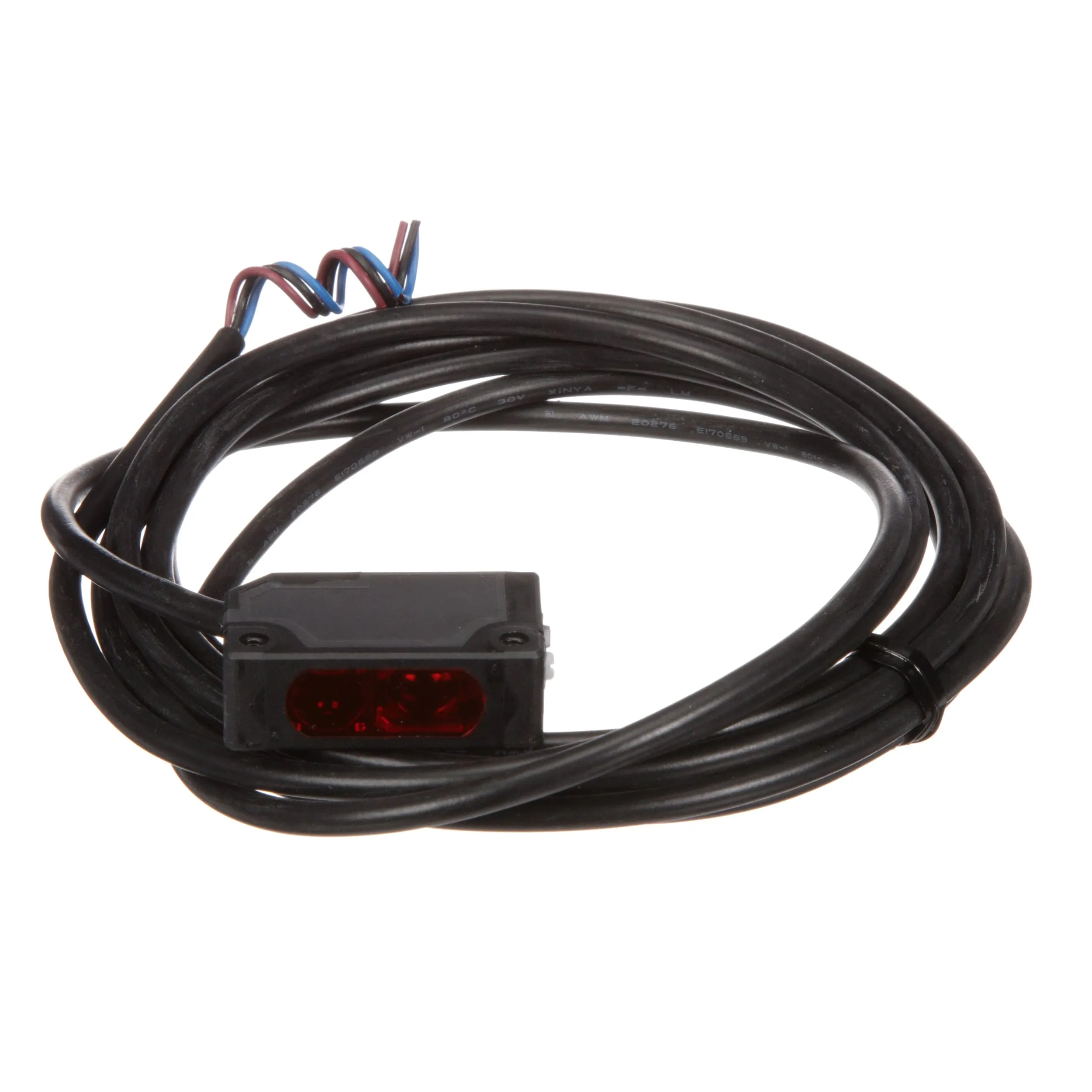

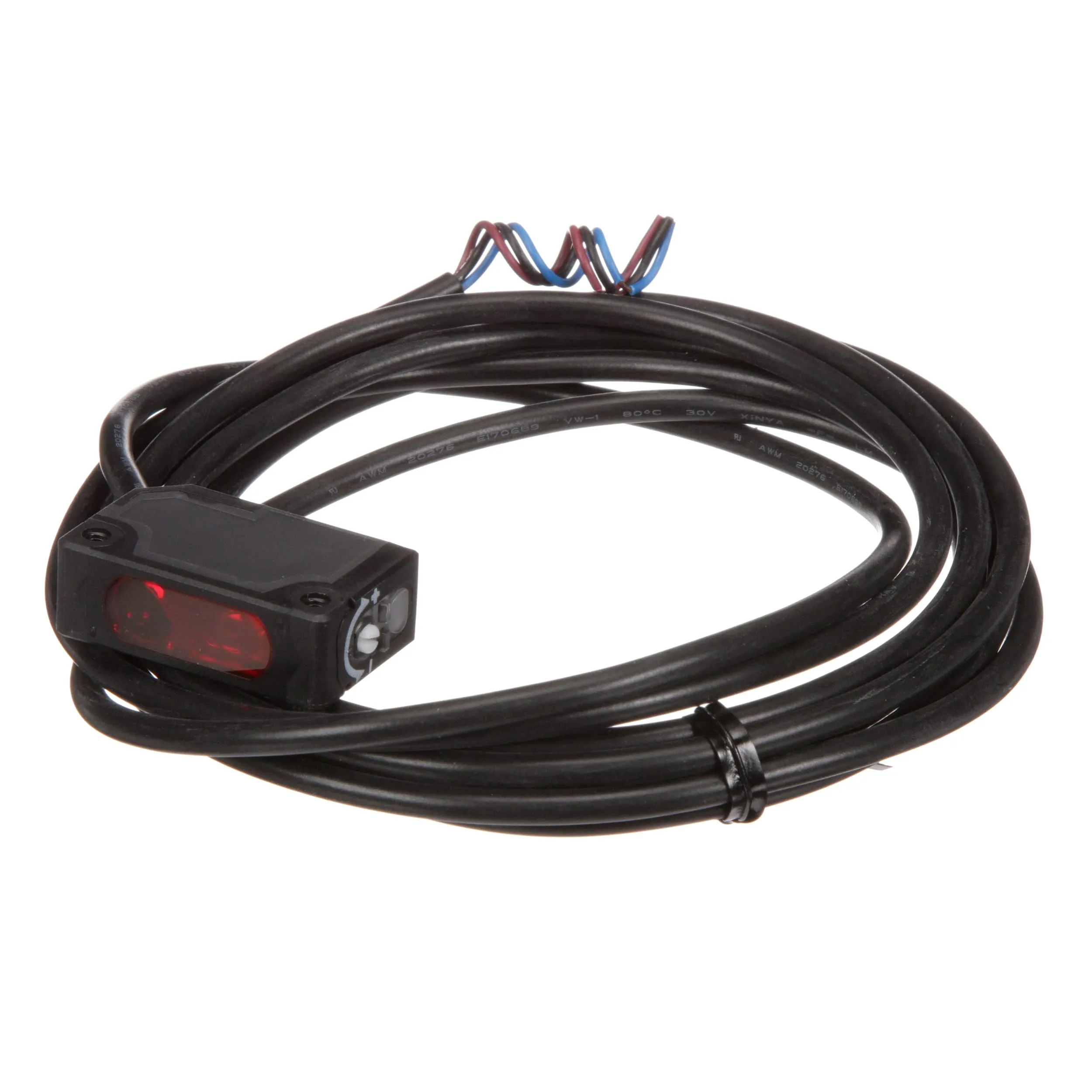

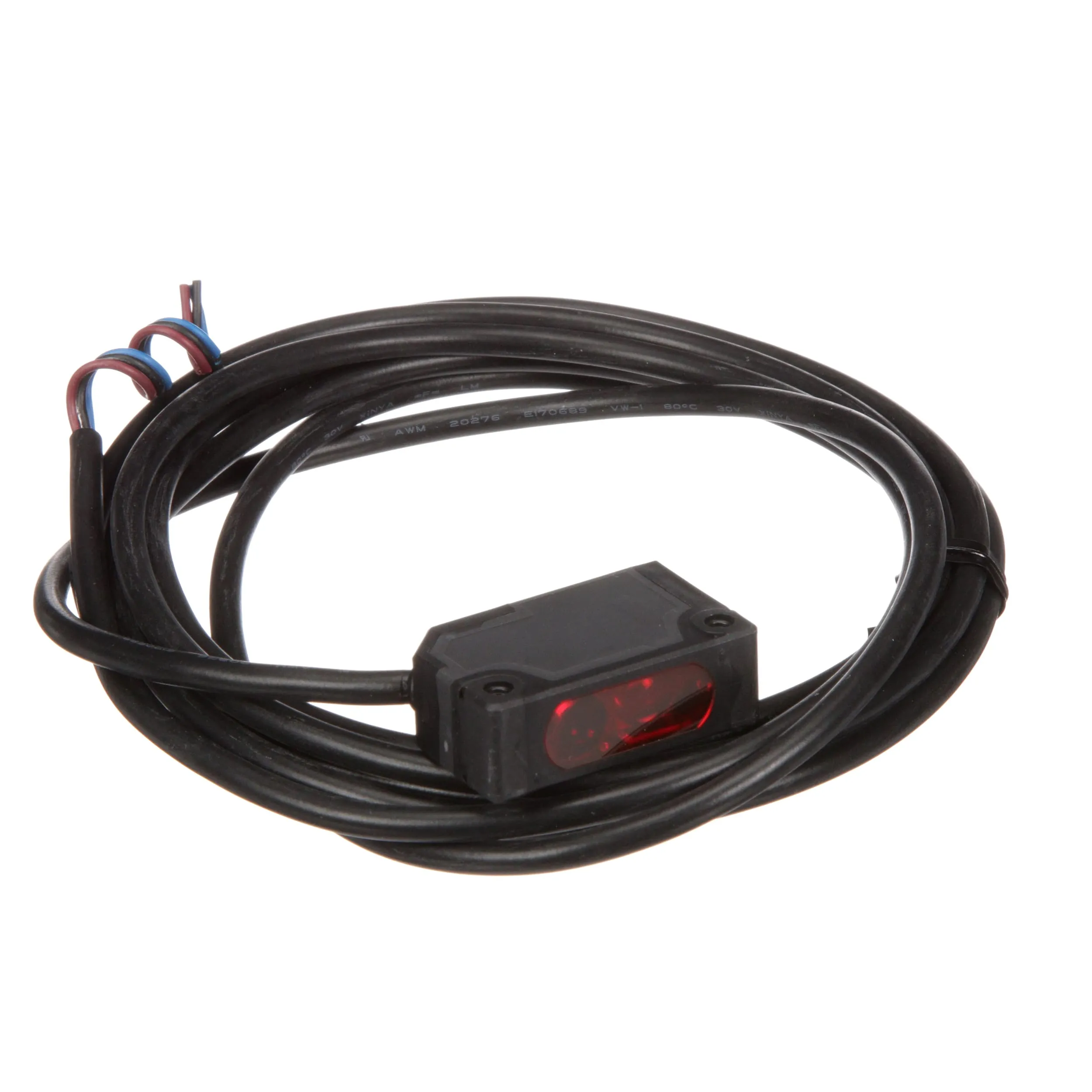

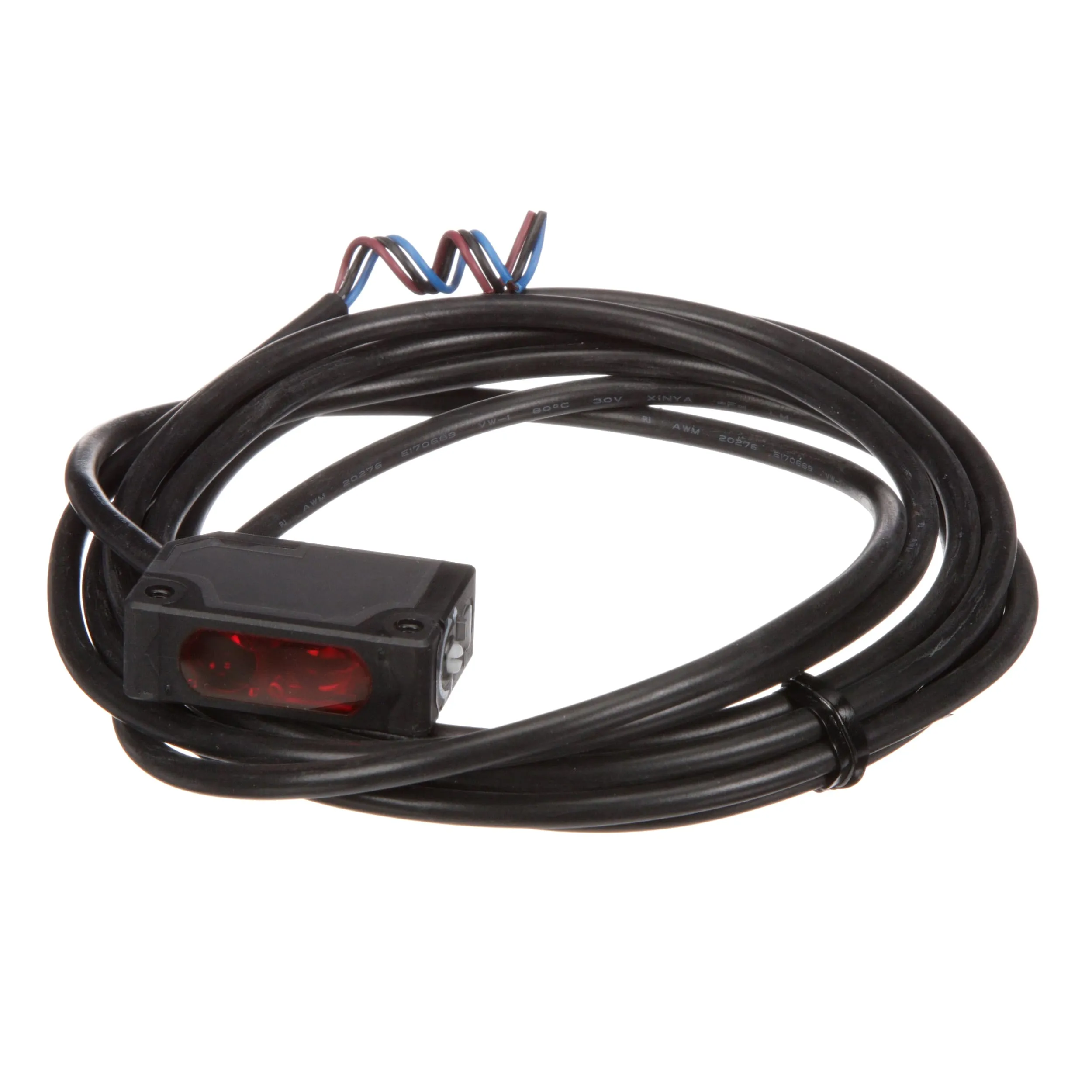

Designed to function consistently over time and tolerate harsh industrial environments, SA1E photoelectric sensors are assembled using precise robotic technology to produce a reliable, accurate and durable product. Available in seven different optical functions, there’s an SA1E sensor for every application. Competitively priced, these sensors are also easy to install and incorporate numerous features in a compact housing. A choice of NPN or PNP outputs are available, as well as Dark ON or Light ON operation modes, and all SA1E sensors are IP67 rated, UL/c-UL listed and CE marked.
