Overview

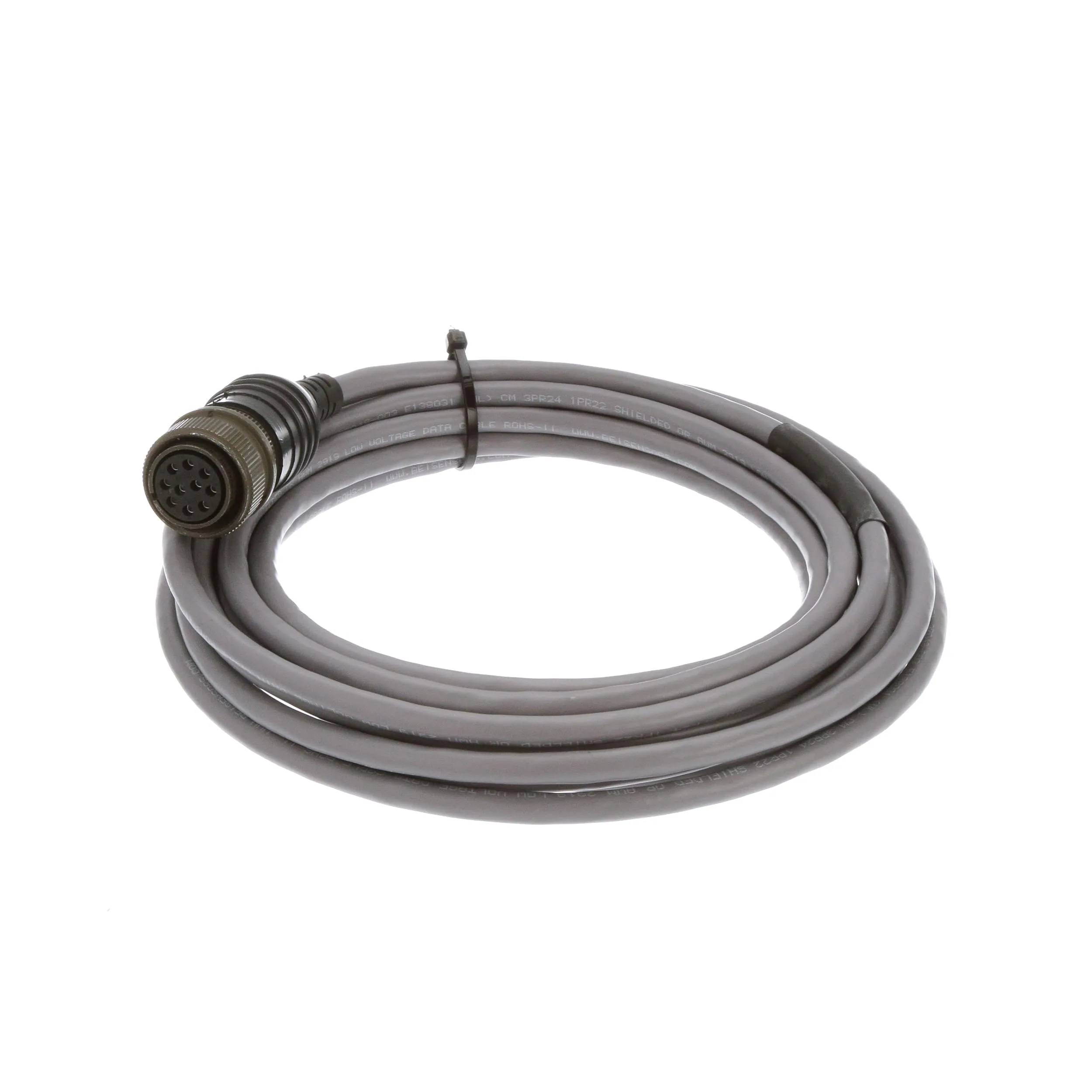

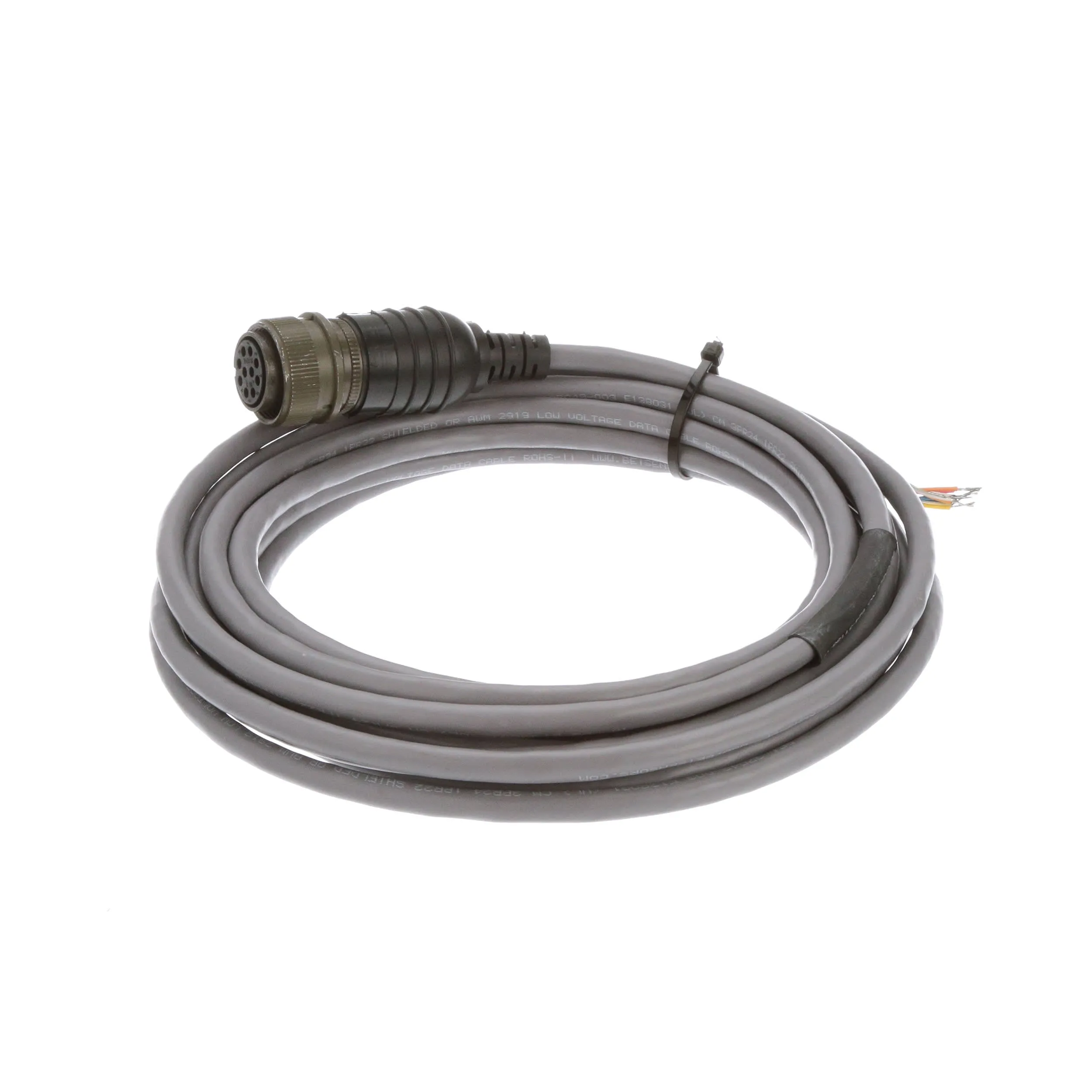

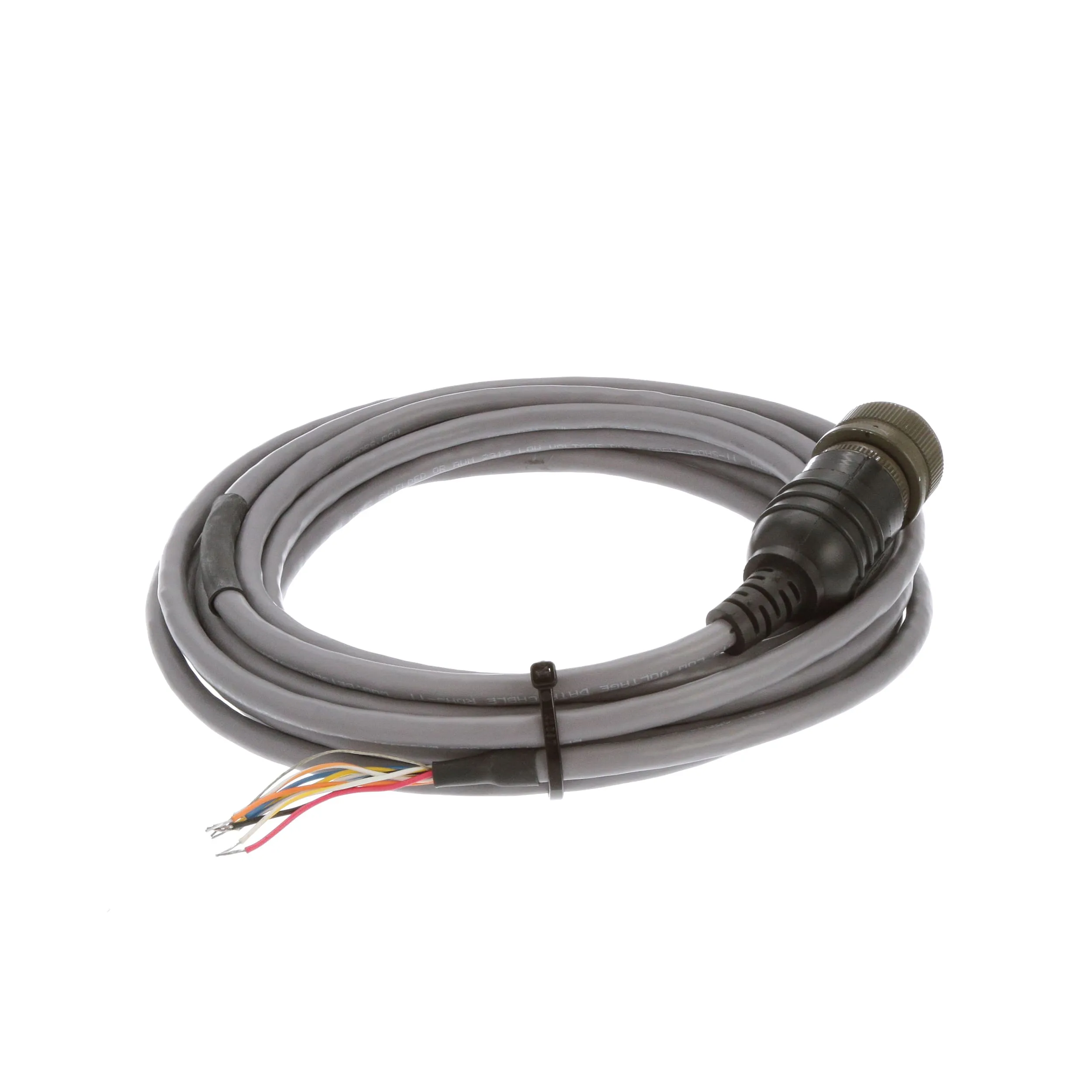

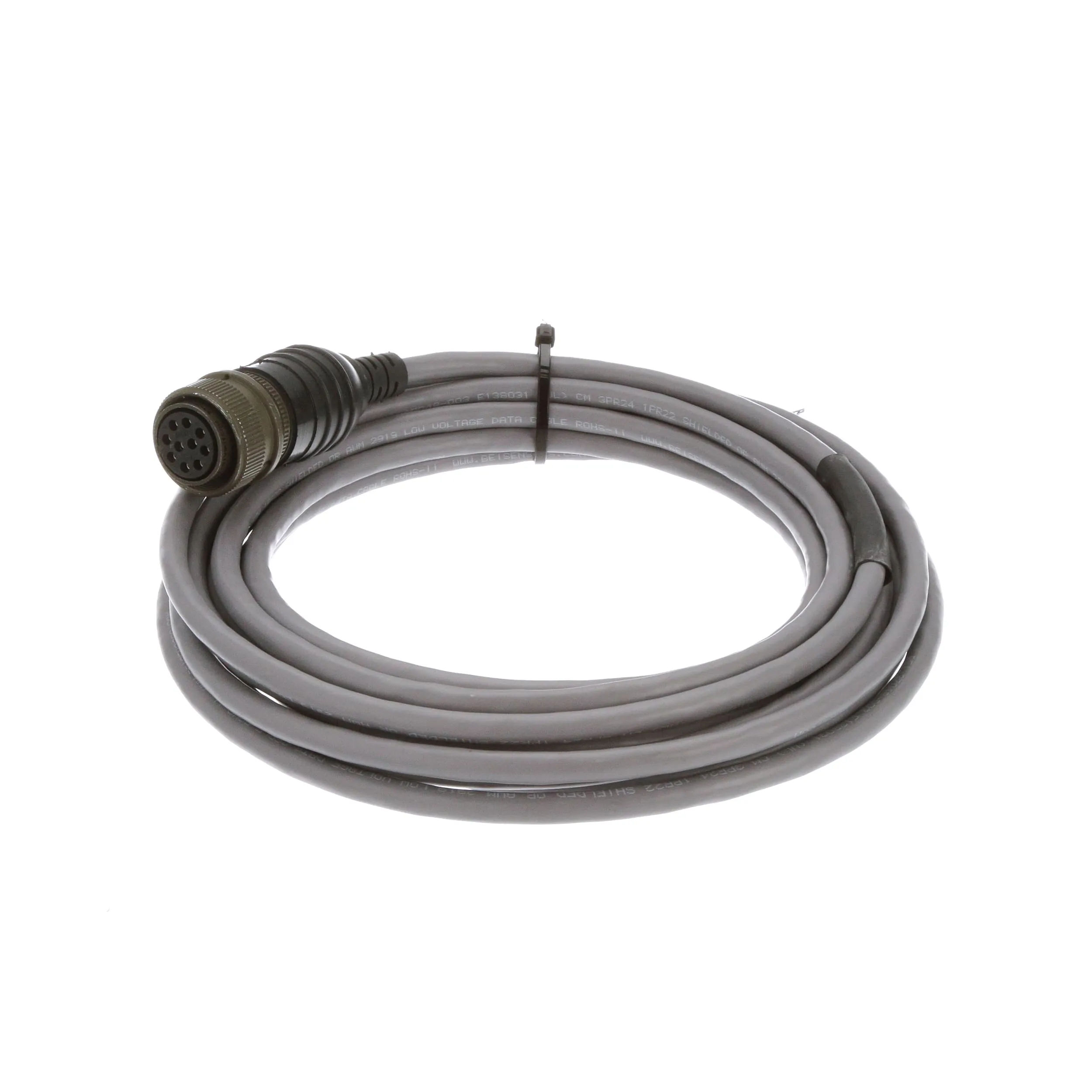

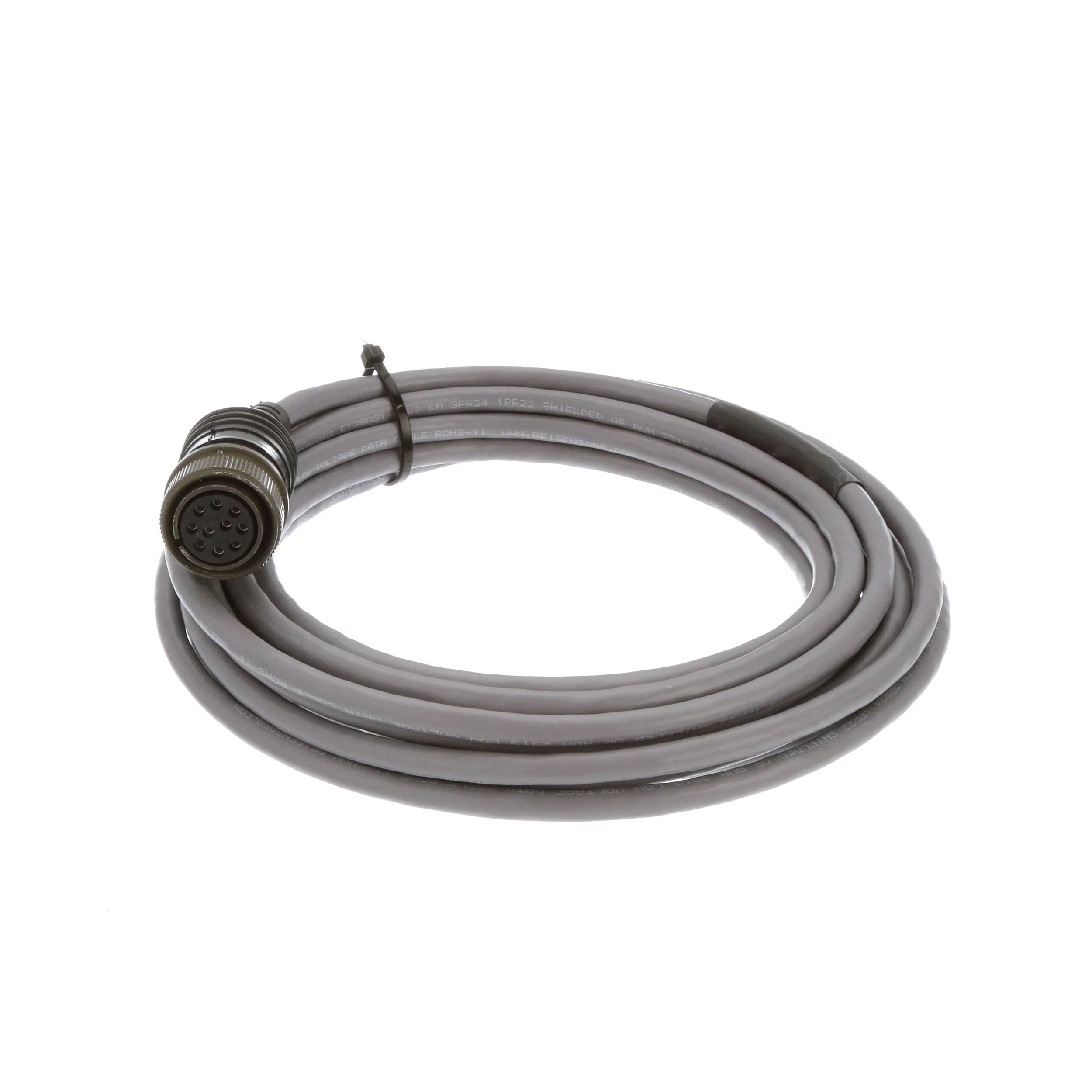

Amphenol Industrial MS 5015 Series — MIL-DTL-5015 and MIL-5015 Type Standard Cylindrical Connectors:

MS connectors meet the latest performance requirements of MIL-DTL-5015. These connectors represent well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-DTL-5015 features threaded couplings and single key/keyway polarization, representing maximum simplicity in design. Applications include military ground support equipment, ordnance and shipboard installations. Amphenol Industrial Operations manufactures five classes of connectors to meet different requirements. Class designations and brief descriptions are listed below.

Features:

Environmental sealing with Combined power and signal all in one connector

The RADSOK® advantage provides contacts that handle up to 150% higher amperages than standard contacts.

MIL-C-5015 features threaded couplings and single key/keyway polarization, representing maximum simplicityin design

Operating voltage to 3000 VAC (RMS) at sea level

Splash proof with the 417 suffix plus 97-67 cable clamp

Wide selection of shell styles and insert patterns; Resilient inserts

Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)

Solid or split shell construction

Solder or crimp termination

Non-rotating contacts

Medium to heavy weight cylindrical

Durable, field-proven design

Accessories for both individual wire seal and jacketed cable

Options:

Five shell styles

Nineteen shell sizes

305 contact arrangements from 1 to 104 circuits

Solder or crimp contacts, sizes 16-0 accepting 22-0 AWG

Coaxial and thermocouple contact options

Five class designations

Alternate insert positioning

Hermetic configurations available

Zinc alloy plating (cadmium-free) available
