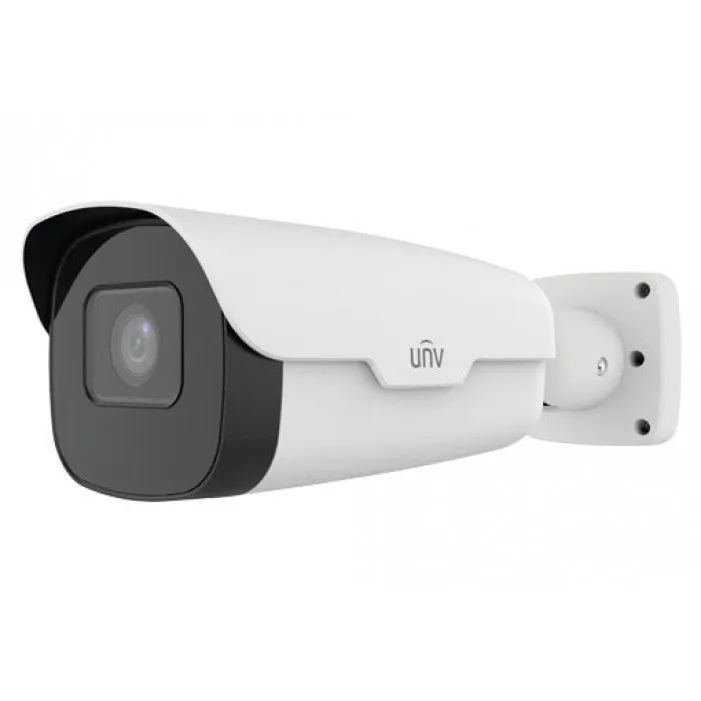

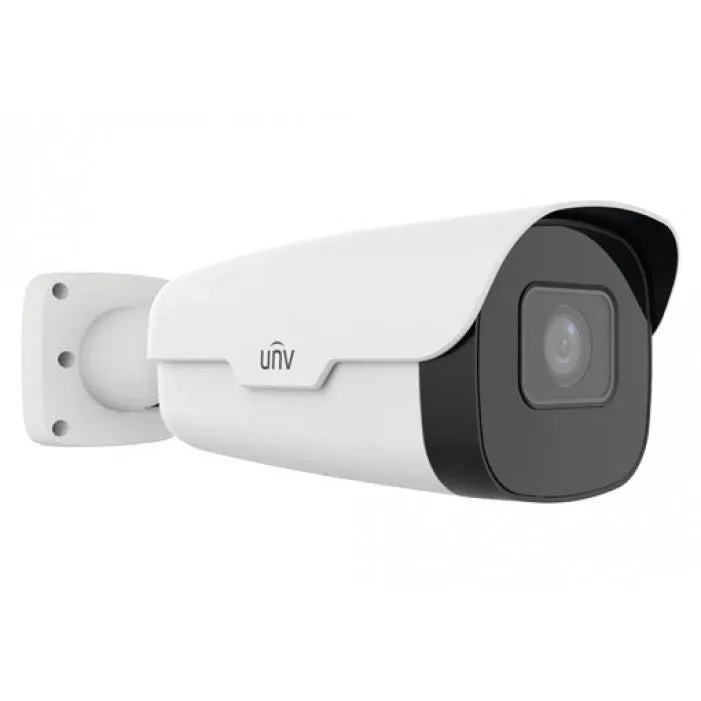

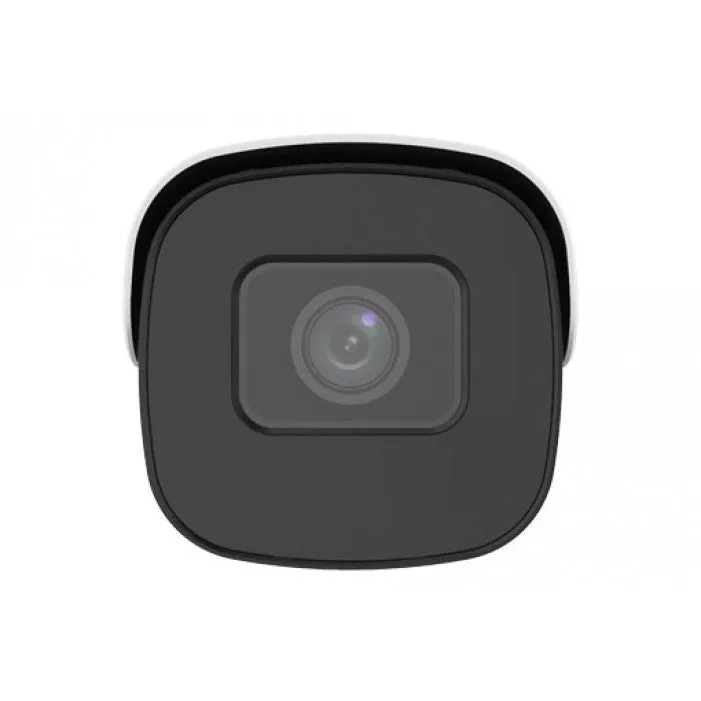

The IPC264EA-HDZK from Uniview is a 4 megapixel lighthunter intelligent bullet network camera with 2.8-12mm lens.
Features
Optics
- 1/1.8", Powered by lighthunter
- SmartIR, up to 100m (328 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Five Streams
- 2688*1520@60fps in the main stream
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- DC12V or AC24V or PoE power supply
- Wide voltage range of ±25% in AC, -10%~ 25% in DC
- Micro SD, up to 256 GB
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| Product SKU | IPC264EA-HDZK |
|---|---|
| Brand | Uniview |
| Condition | New |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| IR Distance | 100m/328ft |
| S/N Ratio | >55dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Privacy Zone | Up to 8 areas (8 blacks / 8 mosaics) |
| Power Consumption | Max 13W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -40℃~60℃(-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour:0.0005lux (F1.2, AGC ON)0 lux with IR |
| Lens Size | 2.8-12mm |
| Camera Signal | Network IP |
| Lens Type | Varifocal |
| Angle of View | (H): 42.6°~113.7°, (V): 24.1°~59°, (O): 48.9°~128.1° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| IR Wavelength | 850nm |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 101 Feet |
| Resolution | 4 Megapixel |
| Voltage | 12vDC, 24vAC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | Φ306.4x104.1x98.1mm(Φ12.1’’x4.1’’x3.9’’) |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Audio | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
