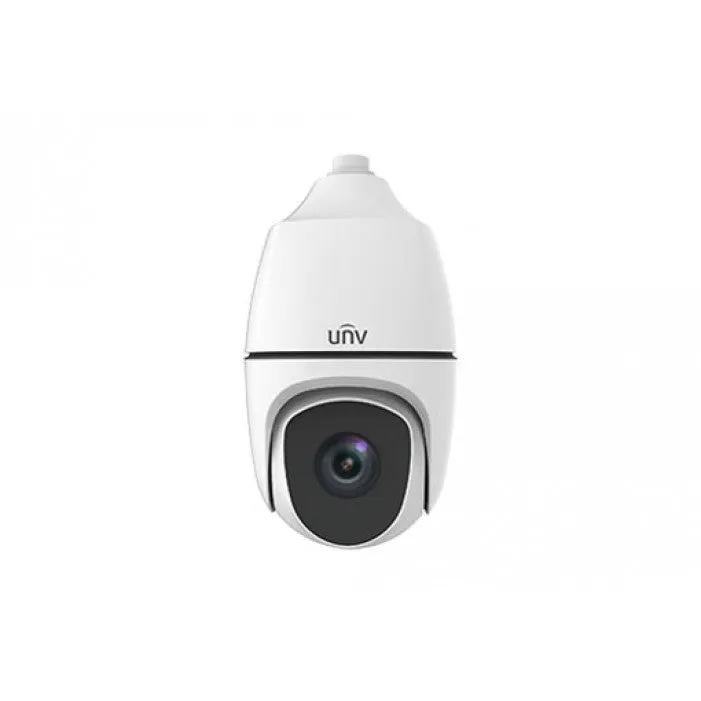

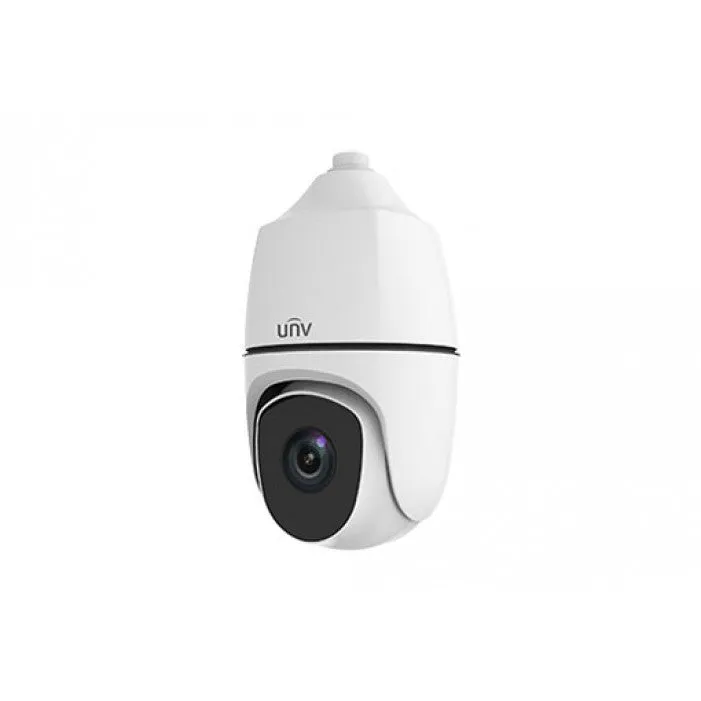

The IPC6858ER-X40-VF from Uniview is a 8 megapixel lighthunter IR network PTZ dome camera with 40X lens.
Features
- High quality image with 8MP, 1/1.8’’ CMOS sensor
- 3840*2160@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 40X Optical Zoom
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 250m (820ft) IR distance
- AC 24V±25%, DC 24V±25%, PoE (IEEE802.3 bt)
- Alarm 7 in and 2 out, Audio 1 in and 1 out
- IP66 ingress protection
| Product SKU | IPC6858ER-X40-VF |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| IR Distance | 250m/820ft |
| S/N Ratio | >56dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Privacy Zone | 24 areas, up to 4 areas per scene |
| Power Consumption | MAX 61W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour: 0.003Lux (F1.5, AGC ON)0Lux with IR |
| Lens Size | 40X |
| Camera Signal | Network IP |
| Lens Type | Motorized Zoom |
| Angle of View | (H): 58.4° ~ 2.08°, (V): 36.8° ~ 1.3°, (O): 72.1° ~ 2.38° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP66 |
| IR Wavelength | 850nm |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 101 Feet |
| Resolution | 8 Megapixel (4k) |
| Voltage | 24vDC, 24vAC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | Φ270 x 497mm (Φ10.6” x 19.6”) |
| Durability | Weather Resistant |
| Mount Type | Pendant |
| Audio | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
