LMPL-101 Plug Load Controllers include a 20 amp relay for on/off control of connected outlets, and a high-efficiency switching power supply. They are part of a WattStopper Digital Lighting Management (DLM) system, and enable energy efficient control of plug loads.
Features:
- Type: Digital Plug Load Room Controlier
- Special Features: Plenum-rated controller
- Voltage: 120VAC, 60Hz
- Amp: 20
- Class 2 Output: 24VDC 150 mA
- Plenum-rated controller with line voltage relay and switching power supply
- Component of Digital Lighting Management integrated control systems

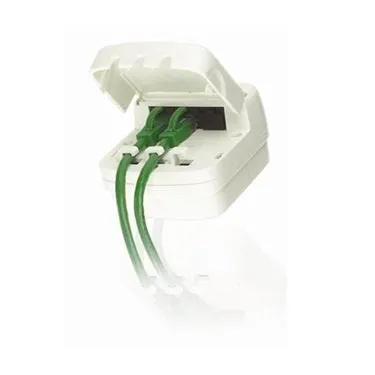

- Plugs to other components using Cat 5e cables with RJ45 connectors eliminating wiring errors
- Plug n??Go automatic configuration and Push n??Learn for personalization
- Accepts occupancy sensor signal for energy saving control of plug loads
- Include a 1/2??(12.7mm) threaded nipple and locking ring
Model:
LMPL-101
